Plug‑and‑Play Plant
Factory pre‑assembled and pre‑wired for fast site mobilization — crane down the 20′ module, make utility connections and begin generating.
SolarFold
SolarFold — 130 kWp redeployable solar

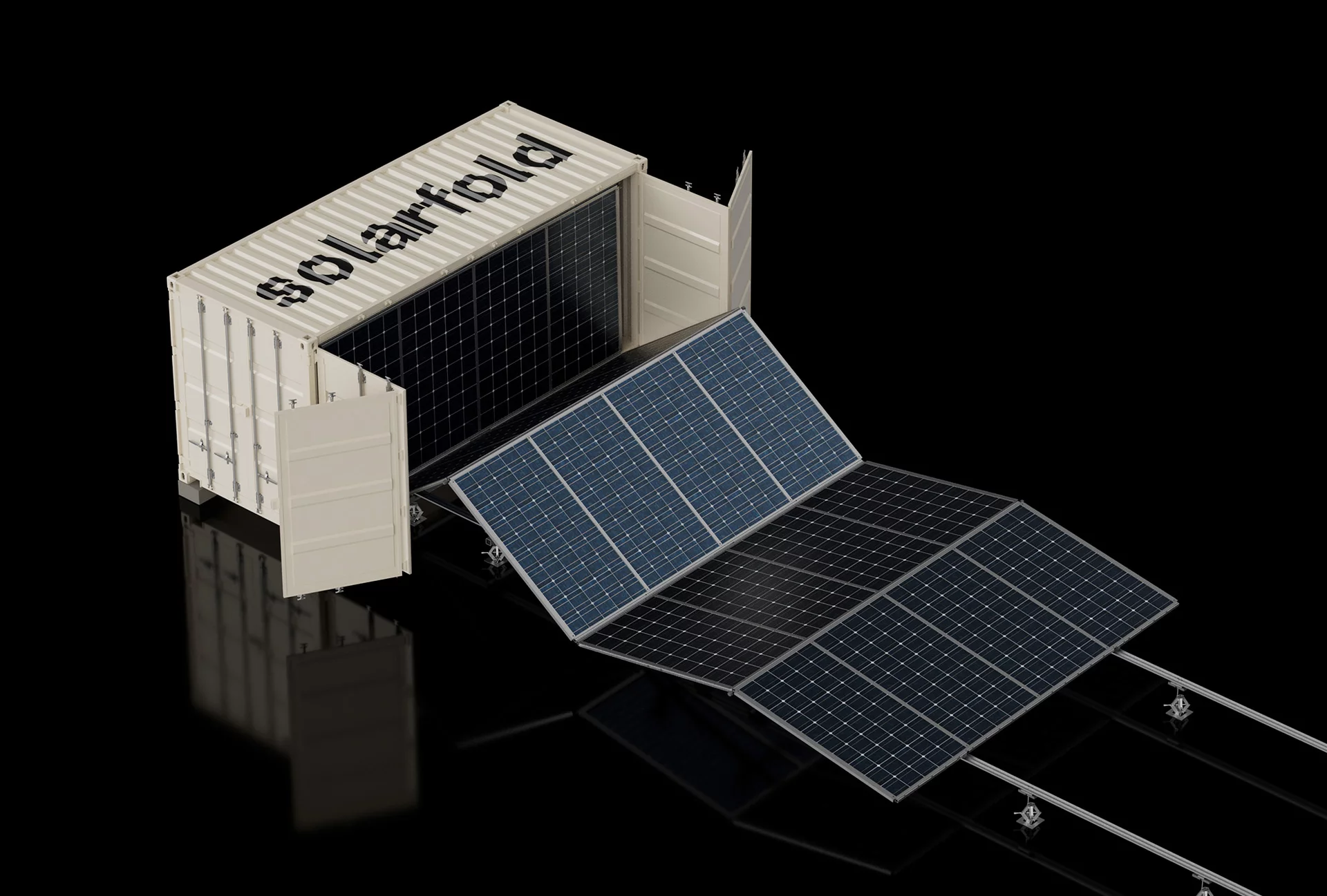

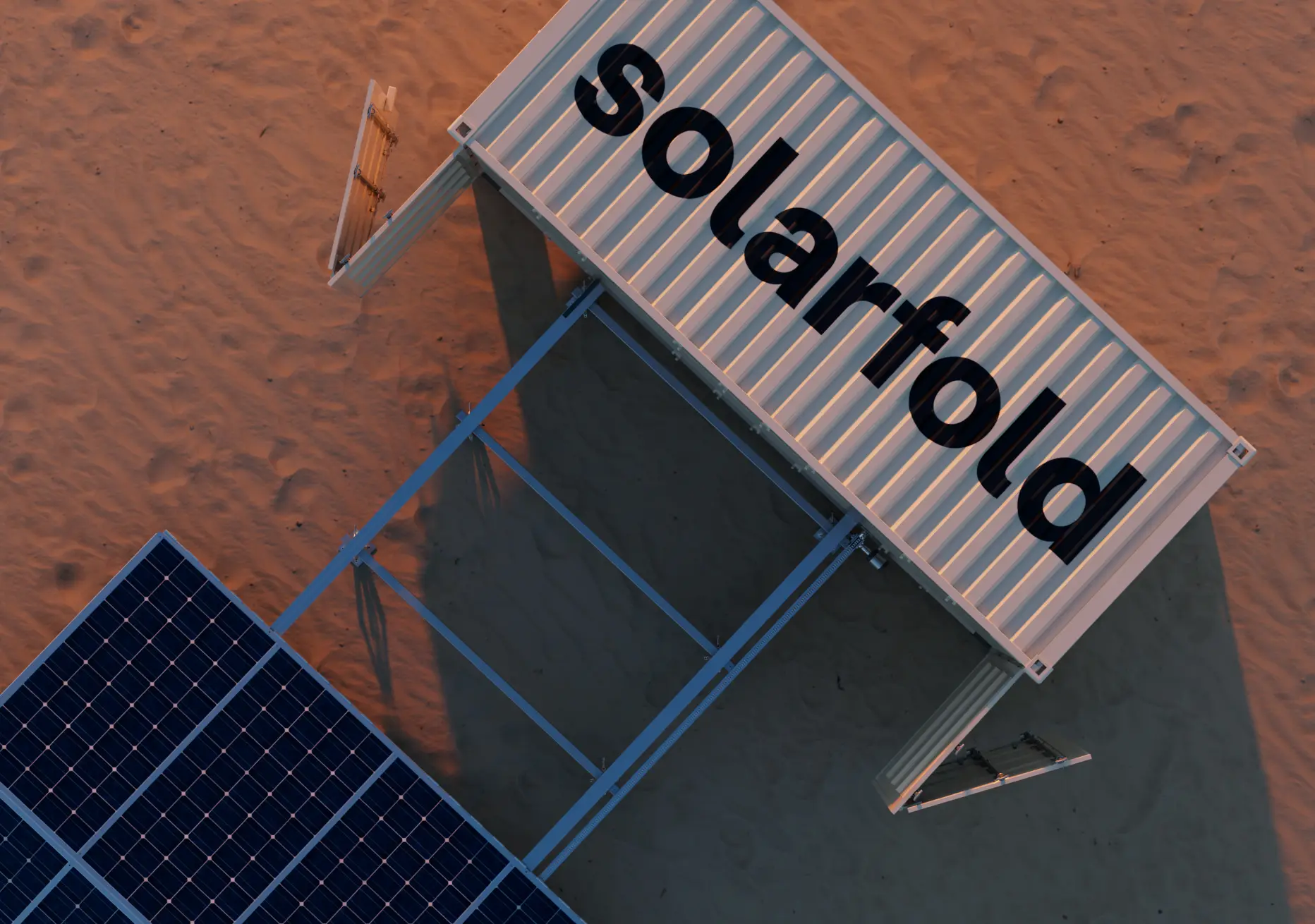

A pre‑wired, plug‑and‑play solar plant packaged in a 20′ ISO High Cube container. Designed for intermediate projects (1–5 years), fast deployment and rapid redeployment.
Key Highlights
Engineered for rapid deployment, scalability and reliable operation across demanding environments.
130 kWp in 20′ ISO
Very high specific capacity packaged in a CSC‑certified High Cube container for easy logistics, shipping and compliance.
Scale to Multi‑MW
Interconnectable containers allow you to grow capacity in repeatable blocks and standardize deployment across projects.
Rapid Fold / Unfold
Designed for quick set‑up and redeployment; motorized option performs unfolding/refolding in less than one hour.
On‑Grid or Off‑Grid
Operate for self‑consumption on‑grid or pair with storage for autonomous hybrid systems at remote sites.
Light‑Touch Permitting
Ground‑mounted, temporary installation that typically avoids major construction permits, helping compress project timelines.
Gallery
System configurations
On-grid and off-grid SolarFold packages — compare PV capacity, storage, and deployment options.
Basic
On-Grid
A Solarfold providing 130 kWp without storage capacity.
Power
1 x 130 kWp
Storage*
-
Pro
On-Grid
A Solarfold in combination with a 160-kWh storage unit in a 10-foot container.
Power
1 x 130 kWp
Storage*
1 x 160 kWh / 80 kW
Suitable as a back-up power supply system. We use tried and tested lithium-ion technology, and can customise to your needs.
Performance
On-Grid
Three Solarfolds in combination with a 240-kWh storage unit in a 10-foot container.
Power
3 x 130 kWp
Storage*
1 x 240 kWh / 80 kW
Ultra
On-Grid
Five Solarfolds in combination with a 480-kWh storage unit in a 20-foot container.
Power
5 x 130 kWp
Storage*
1 x 480 kWh / 150 kW
Basic
Off-Grid
One Solarfold in combination with a 240-kWh storage unit in a 10-foot container.
Power
1 x 130 kWp
Storage*
1 x 240 kWh / 80 kW
This fully-automatic service-ready ‘hybrid system’ also permits the integration of an emergency power supply unit.
| Version | Description | Power / Storage* | Info |
|---|---|---|---|
| Basic On-Grid | A Solarfold providing 130 kWp without storage capacity. | 1 x 130 kWp - | |
| Pro On-Grid | A Solarfold in combination with a 160-kWh storage unit in a 10-foot container. | 1 x 130 kWp 1 x 160 kWh / 80 kW | Suitable as a back-up power supply system. We use tried and tested lithium-ion technology, and can customise to your needs. |
| Performance On-Grid | Three Solarfolds in combination with a 240-kWh storage unit in a 10-foot container. | 3 x 130 kWp 1 x 240 kWh / 80 kW | |
| Ultra On-Grid | Five Solarfolds in combination with a 480-kWh storage unit in a 20-foot container. | 5 x 130 kWp 1 x 480 kWh / 150 kW | |
| Basic Off-Grid | One Solarfold in combination with a 240-kWh storage unit in a 10-foot container. | 1 x 130 kWp 1 x 240 kWh / 80 kW | This fully-automatic service-ready ‘hybrid system’ also permits the integration of an emergency power supply unit. |
*Storage capacity, charging and discharge power can be adapted to each customer, market and degree of availability.
Technical specifications
Container data for deployment planning.
Container
- Container type
- 20′ HC (Side Door) / LWH: 6.058 x 2.438 x 2.896 m
- Rated power
- 130 kWp / 196 modules at 670 W
- Module alignment
- Any
- Mounting frame
- 10°
- Module installation area
- Approx. 6 m x 123 m
Core Specifications
- Total power
- 130 kWp
- Container
- 20′ ISO High Cube (CSC certified)
- Deployed length
- 125 m
- Deployed width
- 6 m
- Deployed height
- 0.5 m
- Weight (incl. PV & inverters)
- ≈ 13.5 t
Deployment Footprint
- Length ≈ 125 m
- Width ≈ 6 m
- Height ≈ 0.5 m
Suitable for intermediate project durations (1–5 years) and sites requiring fast installation and potential redeployment.
Ready to scope your SolarFold deployment?
Talk to our engineering team about timelines, sites and storage options. xTechs provides design, installation and national support for SolarFold deployments.
